Description of Product Performance

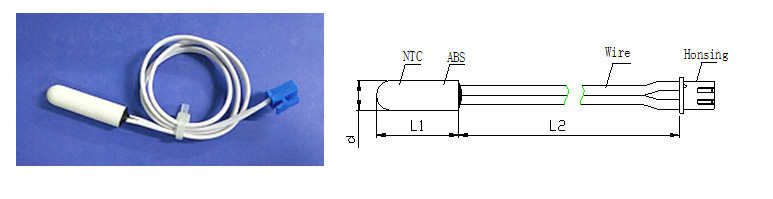

| Code | d | L1 | L2 | ||
| Dimension | Customized | ≥50mm | |||
| Product Performance | 1.Wire specification：By Customer's Requirements. | |
| 2.Withstand voltage ：AC1000V～AC2000V,3Sec | ||
| 3.Insulation：DC500V Min 100MΩ,3Sec | ||
| 4.Operating temperature range：-30℃～105℃ | ||
| -30℃～125℃ | ||
| Features | 1.Using high-precision, high-stability component package, small temperature difference and more accurate temperature | |
| 2.The product has special waterproof and moisture-proof treatment, and it works stably in humid environment. | ||
| 3.Product installation is convenient, cold resistance, excellent heat resistance, long-term load work | ||
| Product Usage | apply to refrigerator temperature control module | |
Description of Product Performance
| Code | d | L1 | L2 | ||
| Dimension | Customized | ≥50mm | |||
| Product Performance | 1.Wire specification：By Customer's Requirements. | |
| 2.Withstand voltage ：AC1000V～AC2000V,3Sec | ||
| 3.Insulation：DC500V Min 100MΩ,3Sec | ||
| 4.Operating temperature range：-30℃～105℃ | ||
| -30℃～125℃ | ||
| Features | 1.Using high-precision, high-stability component package, small temperature difference and more accurate temperature | |
| 2.The product has special waterproof and moisture-proof treatment, and it works stably in humid environment. | ||
| 3.Product installation is convenient, cold resistance, excellent heat resistance, long-term load work | ||
| Product Usage | apply to refrigerator temperature control module | |
Description of Product Performance
| Code | d | D | L1 | L2 | |||
| Dimension | Customized | ≥50mm | |||||
| Product Performance | 1.Wire specification：By Customer's Requirements. | |||
| 2.Withstand voltage ：AC1000V～AC2000V,3Sec | ||||
| 3.Insulation：DC500V Min 100MΩ,3Sec | ||||
| 4.Operating temperature range：-30℃～105℃ | ||||
| -30℃～125℃ | ||||
| Features | 1.Using high-precision, high-stability component package, small temperature difference and more accurate temperature | |||
| 2.The product has special waterproof and moisture-proof treatment, and it works stably in humid environment. | ||||
| 3.Product installation is convenient, cold resistance, excellent heat resistance, long-term load work | ||||
| Product Usage | apply to ice-making equipment temperature control module | |||
